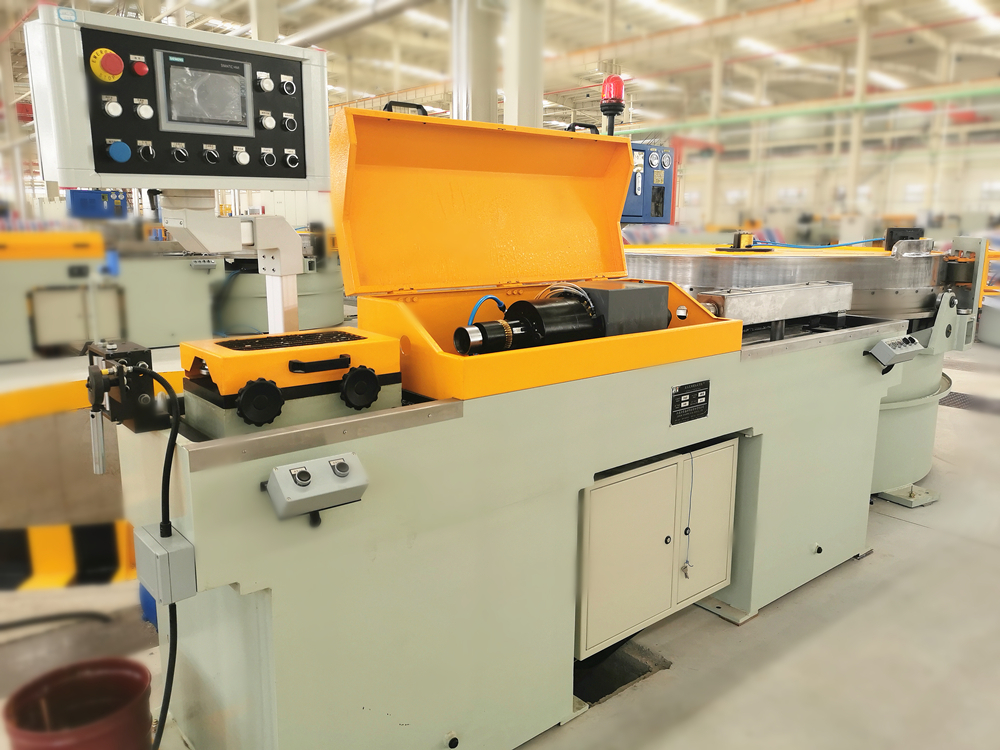

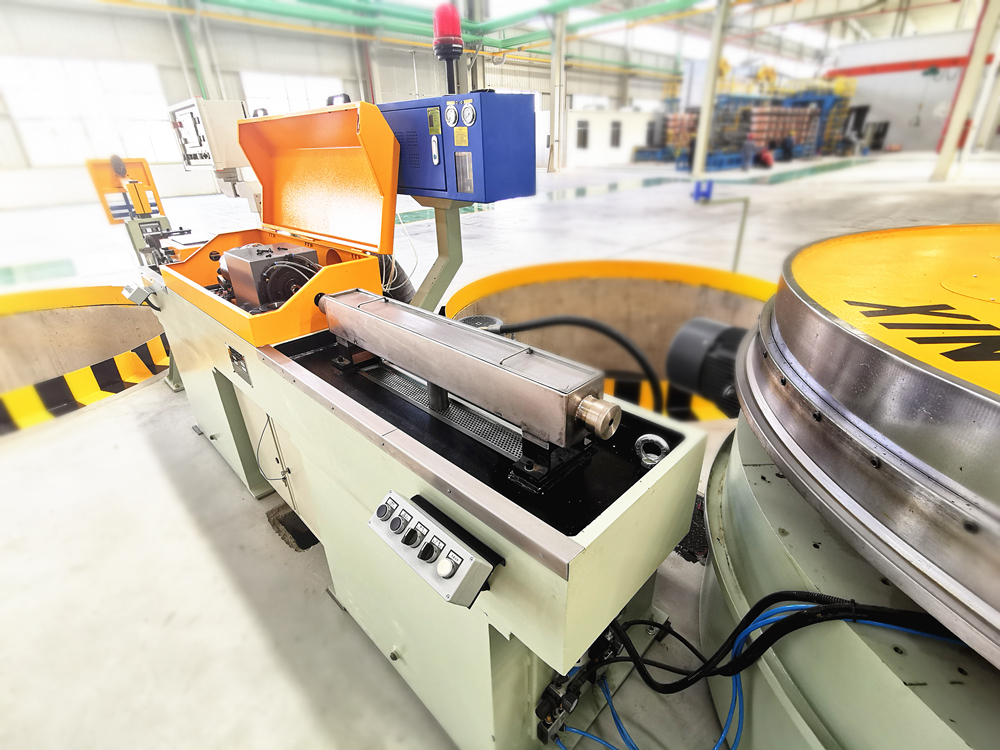

Al Tube Up-block IGT Machine

XR-ZLCX type up-block aluminum tube drawing machine is developed by XR Hi-tech for medium/low-speed aluminum tube drawing equ

Product details
XR-ZLCX type up-block aluminum tube drawing machine is developed by XR Hi-tech for medium/low-speed aluminum tube drawing equipment. The block is placed upright with a  simple and precise structure.
The machine consists of unwinding, straightening, die-seat, drawing block, winding unit, control system and other parts, it is mainly used to produce φ5 ~ φ20 aluminum tube products.

The machine is novel in design and reasonable in structure. The whole machine adopts many new technologies: such as power system with variable frequency speed regulation, continuous block drawing process, PLC programmable control system and so on.


Total Power100KW
Finishing Tube Size Ø5mm~20mm
Block DiameterØ2200mm
Drawing Speed0 ~ 200m/min
Water/air Comsumption6m3/h, 10m3/h
Basket Max Weight900kg
Tube Pay-off Type:Driven feeding
